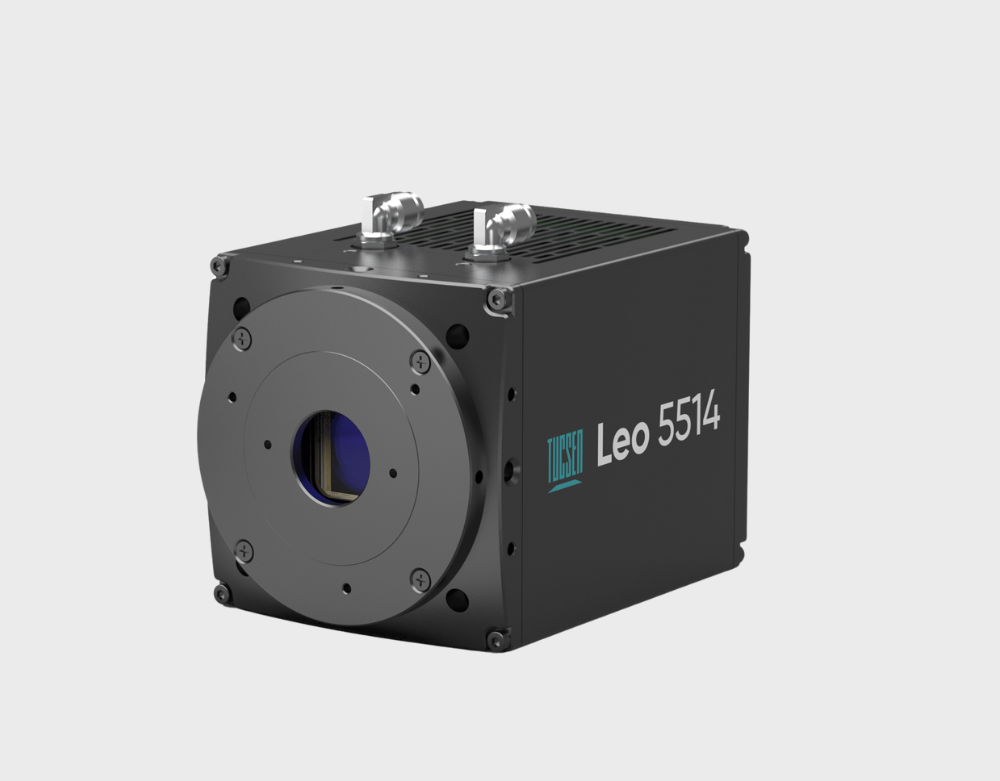

LEO-5514

Overview

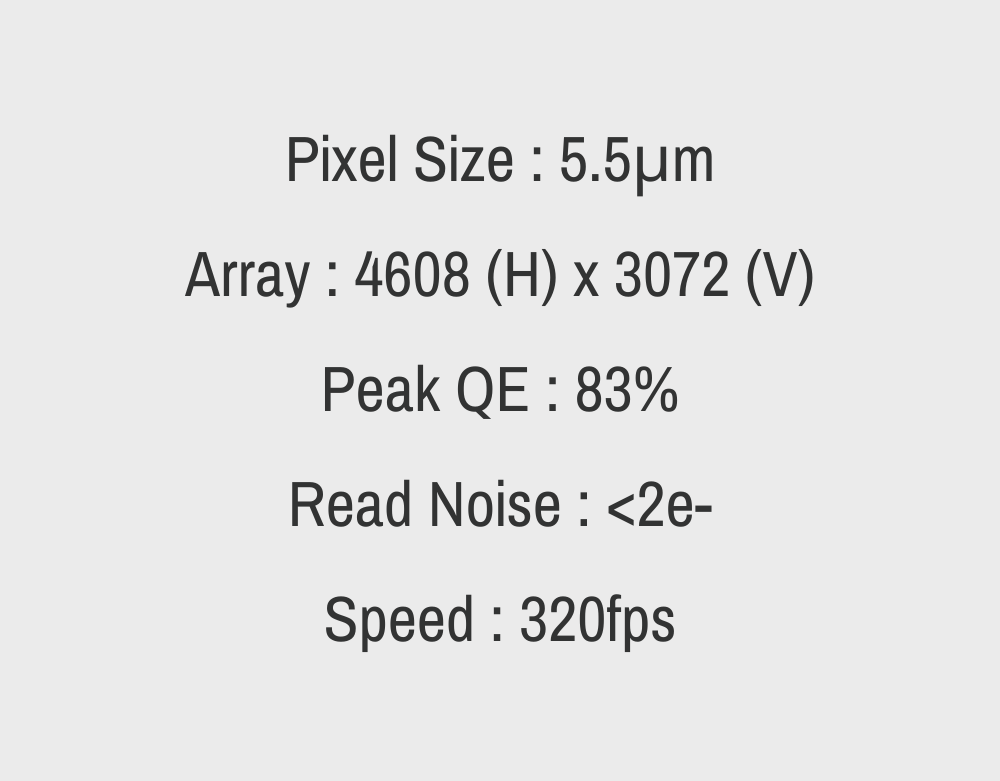

The LEO 5514 Lite is a high-speed global shutter scientific camera, featuring a back-illuminated sensor with an impressive peak quantum efficiency of up to 83%. With a pixel size of 5.5 µm, it excels in sensitivity. Equipped with a 40G CoaXPress-over-Fiber (CoF) interface, the camera supports transmission speeds of up to 320 fps at 8-bit depth. Its compact, low-vibration design makes it an optimal choice for high-throughput scientific imaging applications.

BSI sCMOS + Global Shutter

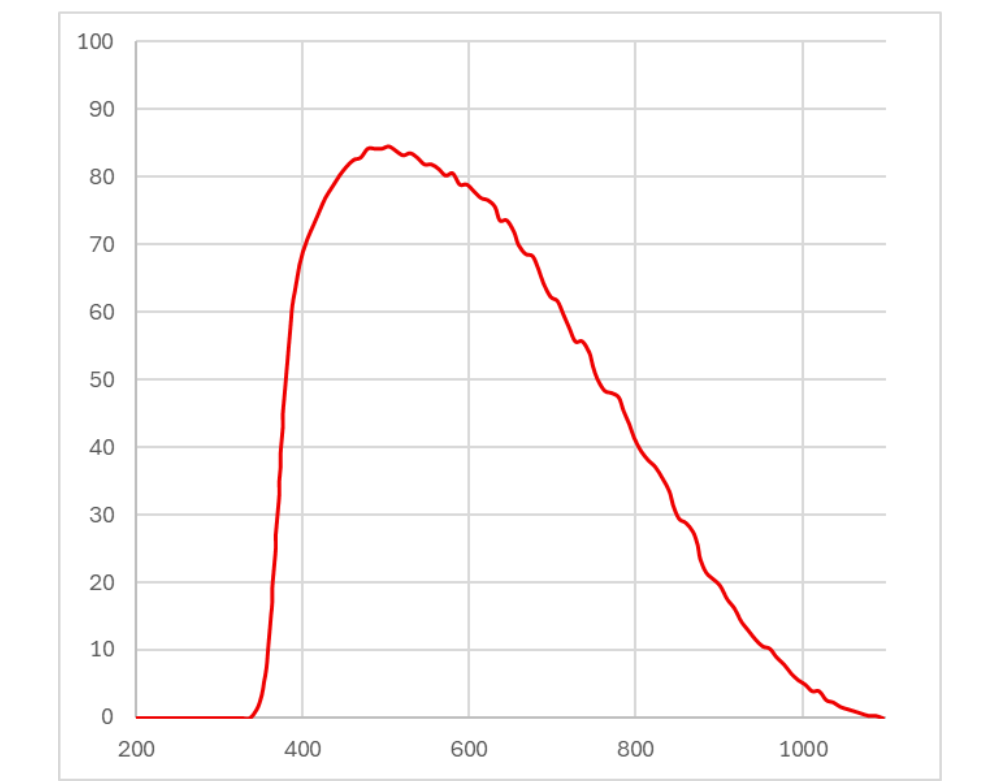

The LEO 5514 Lite integrates global shutter architecture with BSI sCMOS technology, offering a peak QE of 83% and 2.0 e⁻ read noise. This combination enables superior performance in high-speed and signal-sensitive applications such as voltage imaging and live-cell imaging.

30.5 mm Large FOV

Featuring a 30.5 mm large-format sensor, the LEO 5514 Lite is well-suited for advanced optical systems and large-sample imaging. It enhances imaging efficiency in spatial biology, genomics, and digital pathology by minimizing stitching errors and maximizing data throughput.

320 fps @ 14MP / 40G CoF

The LEO 5514 achieves ultra-fast imaging at 320 fps using its proprietary 40G CoaXPress over Fiber (CoF) interface. This technology ensures stable, real-time transmission of 14 MP images, overcoming traditional bandwidth constraints and seamlessly integrating into high-throughput scientific and instrumentation systems.
