Libra 3405 Mono

Global Shutter, 5MP, High-Speed

Overview

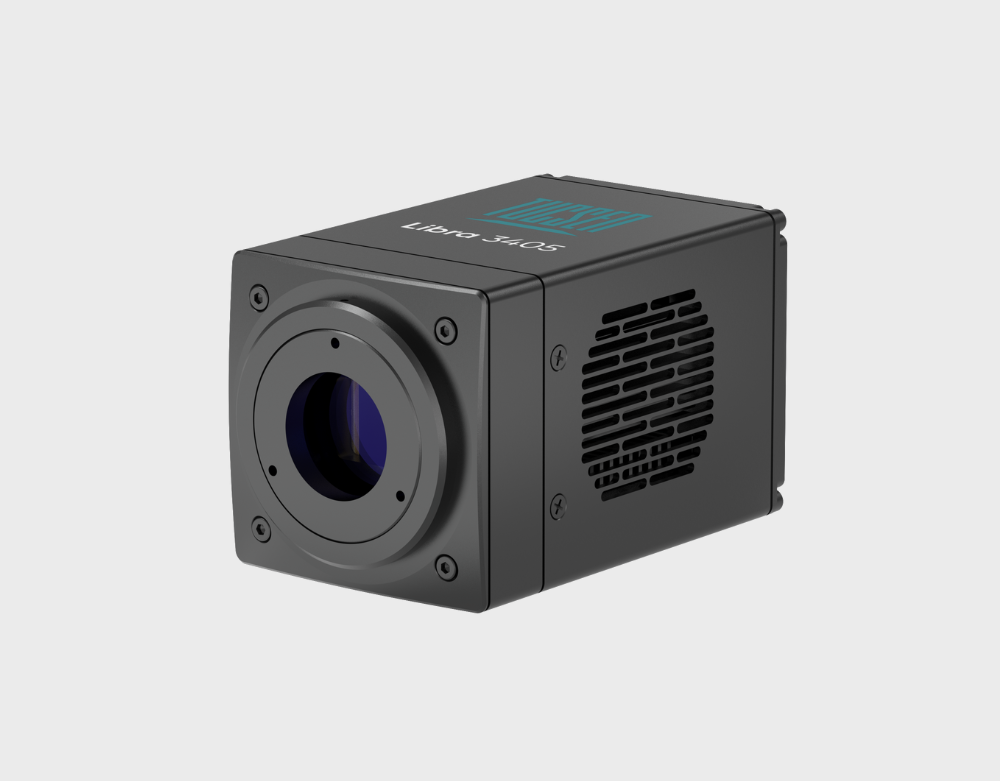

The Libra 3405M sCMOS is a global shutter monochrome camera developed by Tucsen for seamless instrument integration. It features front-illuminated sCMOS technology, providing a wide spectral response from 350nm to 1100nm and high sensitivity in the near-infrared range. Its compact design ensures high-speed performance and dynamic range, along with advanced cooling technology, enhancing overall system integration and performance.

Wide Spectral Response

With its front-illuminated sCMOS technology, the Libra 3405M sCMOS offers an extensive spectral response (350nm to 1100nm) and excellent sensitivity in the near-infrared region. This makes it an ideal choice for a variety of fluorescence imaging applications, particularly in multi-channel scanning scenarios.

Global Shutter & High-Speed

The Libra 3405M sCMOS incorporates global shutter technology, allowing for clear and rapid capture of moving samples. It is also equipped with a fast GigE interface, which doubles the imaging speed compared to USB3.0. The camera can achieve full resolution speeds of up to 100 fps at 12-bit depth and 164 fps at 8-bit depth, significantly enhancing throughput efficiency for batch detection in instrument systems.

Cooling for Low Light

The camera’s cooling technology effectively reduces thermal noise from the chip, providing a uniform background for fluorescence imaging. This cooling mechanism also ensures stable measurement data for the instrument system, thereby improving overall measurement accuracy.
